Utility Structures
Transmission Poles
Power Transmission Poles
Western Utility Telecom, Inc. is quickly becoming a recognized leader in the utility industry for engineering and manufacturing of transmission pole structures. Our transmission poles are designed to meet the requirements of the NESC C2 standard. From the simplest tangent pole, to the most complex dead-end switch support structures, Western Utility Telecom, Inc. provides structures that will meet your requirements.
Distribution Poles
Electrical Distribution Poles

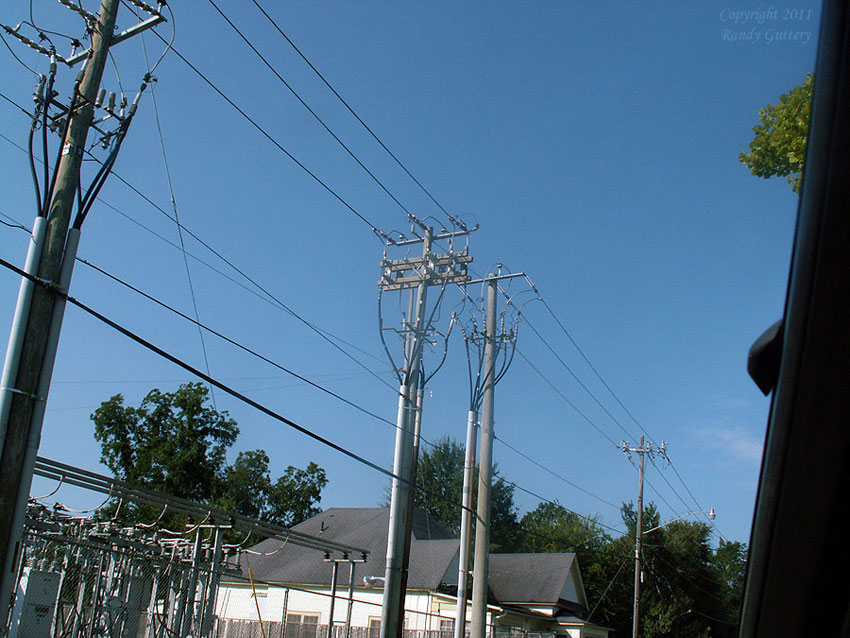

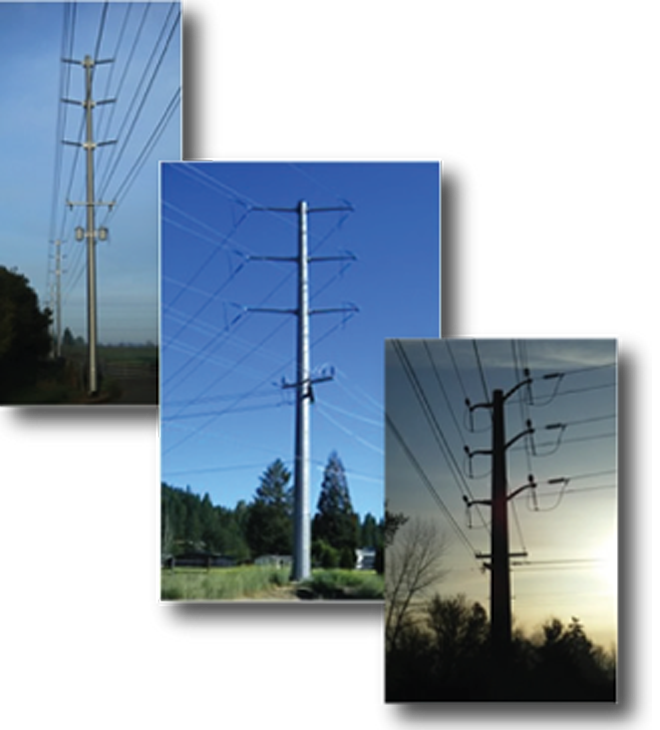

Western Utility Telecom, Inc. produces steel poles and components for the distribution of electricity throughout rural and city regions. We offer a wide range of wood equivalent steel poles available in both galvanized and weathering steel to meet customer requirements.
Direct embed poles may include optional CorroCote II coating systems if required.
Substation Structures
Sub Station Structure

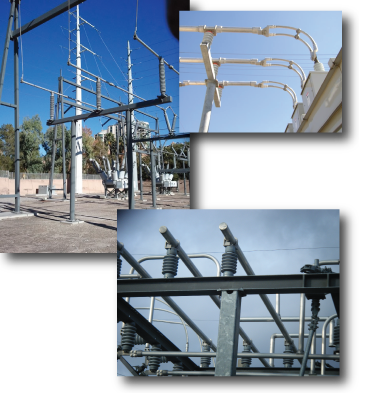

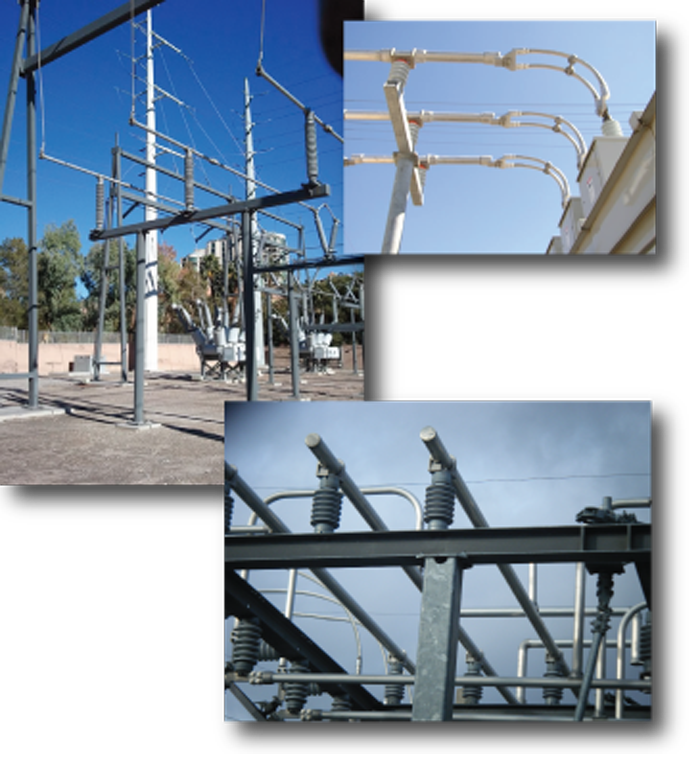

Many existing electric substations require expansion or replacement of aging structures to accommodate equipment. Additionally, solar and wind mill farms utilize electrical substations to transmit and distribute the energy harnessed by the renewable energy industry. Western Utility Telecom, Inc. has the capabilities to design the structures for your substation.
Equipment support structures are designed in accordance with ASCE/MRE 113 for site specific wind and seismic loads, and customer supplied equipment information.
A-Frame structures are custom designed in accordance with customer requirements using the latest industry standards; NESC C2, ASCE/SEI 48, and ASCE/MRE 113.
- Documents submitted include structural calculations and installation drawings certified by a Professional Engineer licensed in the state applicable to the site
- Leg members are 12-sided tapered tubular sections
- Cross arms are square tube or octagon tube depending on loading
- Structures are offered in galvanized or weathering options
- Foundation designs are available upon request
If load tree or dimensional drawings are available click here to Email them so we may generate a formal quote.

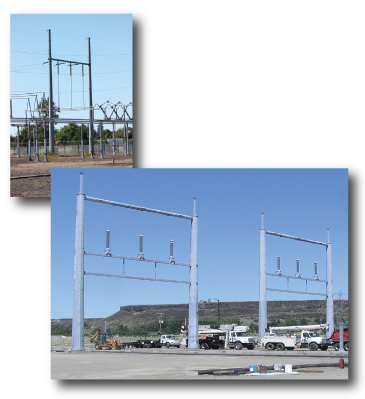

Single-bay and multi-bay structures are designed for economy and to accommodate customer requirements for rigidity and strength.
Attention to detail during design and manufacturing ensures proper field assembly of all our structures.
We are proficient in the design of:- Conductor Wire
- Switch Support
- Multi-Bay
- Slack Span H-Frames
If load tree or dimensional drawings are available click here to Email them so we may generate a formal quote.
Where load tree or dimensional drawings are not available click here, complete the form and submit it so that we may generate a formal quote.
